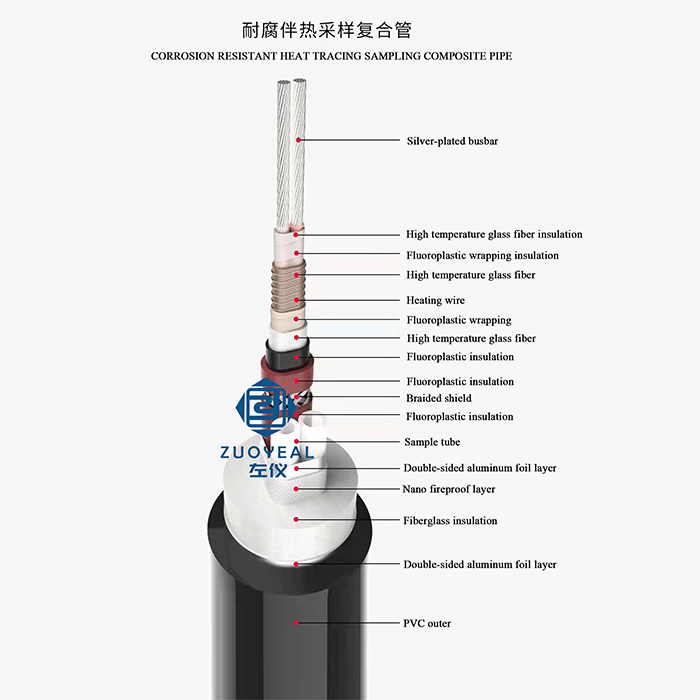

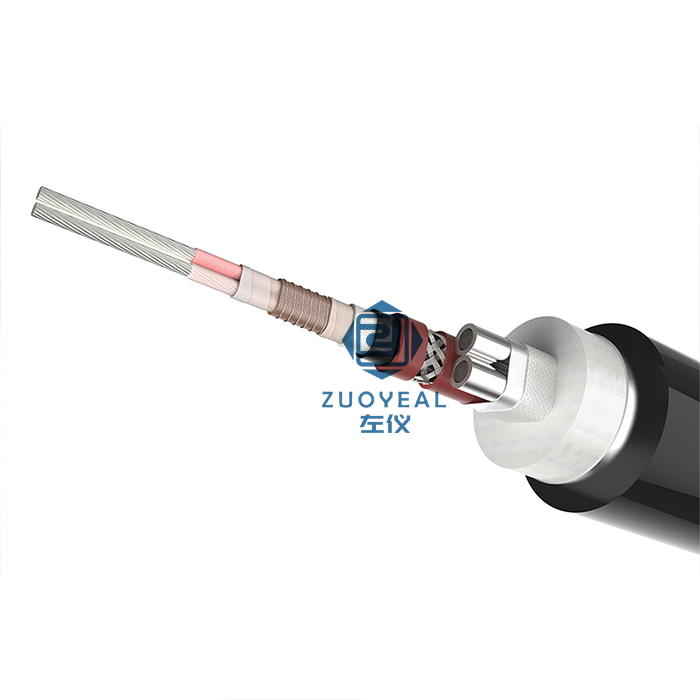

ez@zuoyeal.com It is composed of reinforced explosion-proof constant power parallel tracing, corrosion-resistant and high-temperature sampling pipes (PTFE, PFA, FEP, PVDF, 316L stainless steel, silicon steel), double-sided aluminum foil, high-temperature glass fiber of nano fireproof layer, environmental protection PVC sheath, etc.
Technical characteristics
◎When the ambient temperature is -20c and the wind speed is 15m/s, the temperature in the pipe is maintained at 40~200 ℃
◎The sampling pipeline can resist the corrosion of various acid and alkali media, and the pressure strength is 0.8MPa without leakage
◎The sampling pipeline can work for a long time at a temperature of <55 ℃
◎The minimum radius of curvature of composite pipe is 0.5m
◎Maximum continuous length 100~130m
◎Minimum fixed distance: 5m in vertical direction and 2m in horizontal direction
| Project | Indicators |
| Heat tracing belt | Constant power parallel type reinforced explosion-proof heat tracing belt: 60W/m
Busbar: silver plated copper; 19*0.41 Bus insulation layer: 4 layers, respectively PFA wrapping and alkali free glass fiber weaving Heating wire: imported copper nickel alloy wire Heating wire insulation layer: 3 layers, PFA wrapping, alkali free glass fiber weaving, PTFE extrusion Braid: metal braid 90% Outside sheath: PTFE extrusion |
| Sampling tube | Two special PTFE pipes Φ8
Special Teflon tube with ultra-low volatilization |
| Double sided aluminum foil | Double sided aluminum foil, single-layer wrapping |
| Nano fireproof belt | Nano fireproof insulation layer, in 450 ℃ (or above) high temperature or flame situation quickly harden and form a hard shell Form a hard shell, with heat insulation and fire resistance |
| Glass fibre felt | 50g/ ㎡, 40 layers of two-way wrapping,extreme insulation |
| Sheath | PVC material, cold resistance -25 ℃ |
| Outside diameter | 42±2mm |
